Alhambra Trenchless Pipe Lining and Relining: Can Your Sewer Line Be Fixed Without Digging Up the Yard?
Lining and other no-dig methods can repair some damaged pipes without tearing up a yard or driveway. They do not suit every pipe. This page explains who they fit, what they involve and what to ask.
Is your pipe a candidate for lining?

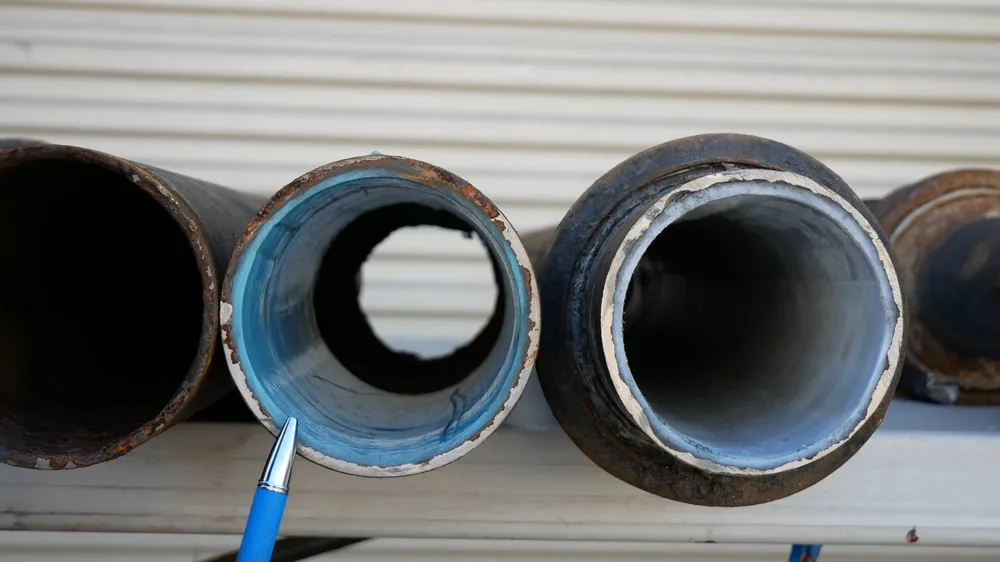

Trenchless lining works by sealing the inside of an existing pipe, so the pipe has to be there to line. A camera inspection decides whether it is.
| What the camera found | Usually suits lining? | Why |
|---|---|---|
| Cracks or small breaks in an intact line | Often yes | The liner seals the cracks from inside |
| Roots entering at joints | Often yes, after cleaning | The roots are cleared, then the joints are sealed |
| Corrosion or scale narrowing the pipe | Often yes | A liner restores a smooth inside surface |
| A collapsed section | No | There is no pipe left to line |
| A badly offset joint or a deep belly holding water | Usually no | A liner follows the existing shape and cannot level it |
| No usable access point | Needs access first | The liner has to be fed in from somewhere |
If you have not had a camera inspection yet, start with diagnosing a damaged sewer line, because the picture decides every option after it.
Trenchless or open trench: how to weigh them
Neither method is better in every case. They solve slightly different problems, and a good plumber will tell you which fits yours.
| Question | Trenchless lining | Open-trench repair |
|---|---|---|
| What gets disturbed | Little or no digging, usually at one or two access points | A trench along the line, including landscaping or paving above it |
| What it repairs | Cracks, roots, corrosion in a line that is still in shape | Collapses, bellies, offsets and anything lining cannot fix |
| What it leaves behind | The existing pipe, lined from inside | A new pipe in place of the old one |
| What you should ask | How long the liner cures and when you can use water again | How the trench will be backfilled and restored |
Lining is not a way to avoid hearing the truth about a failed pipe. If the line has collapsed, digging is the honest answer, and a plumber who says otherwise should show you the footage.
Want to know whether your line might suit lining? Describe what you know to a plumber.
What lining involves, step by step
- A camera inspection confirms the pipe's condition and location.
- The line is cleaned, often by jetting, so the liner bonds to a clean wall.

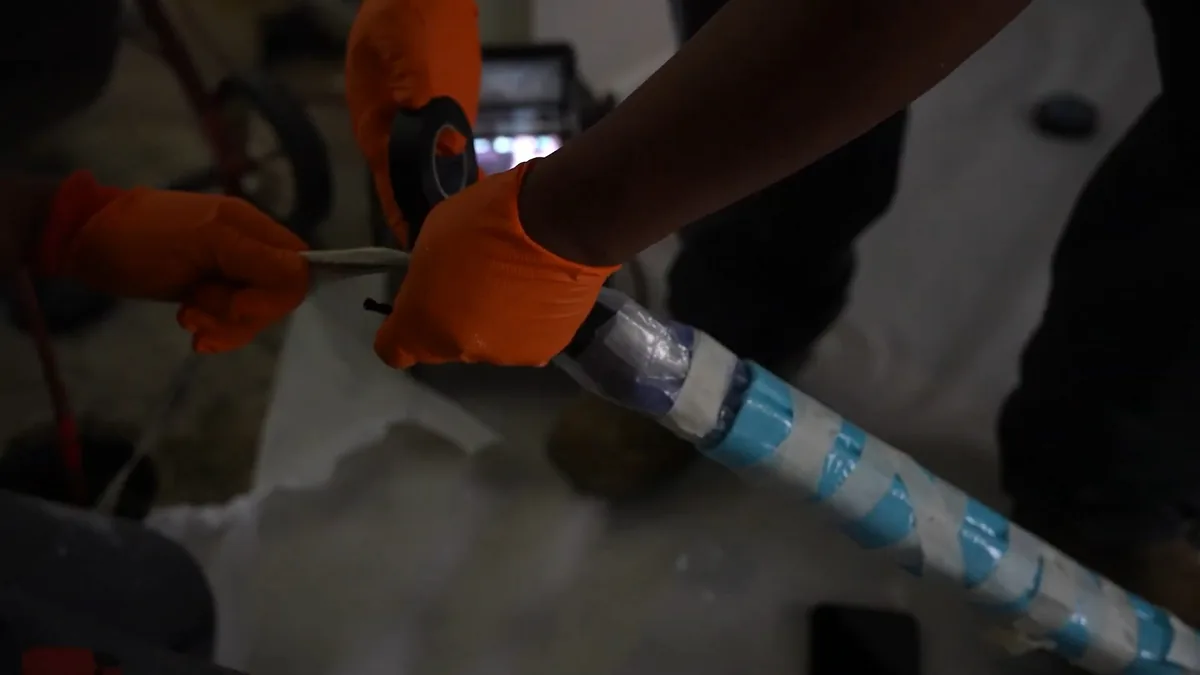

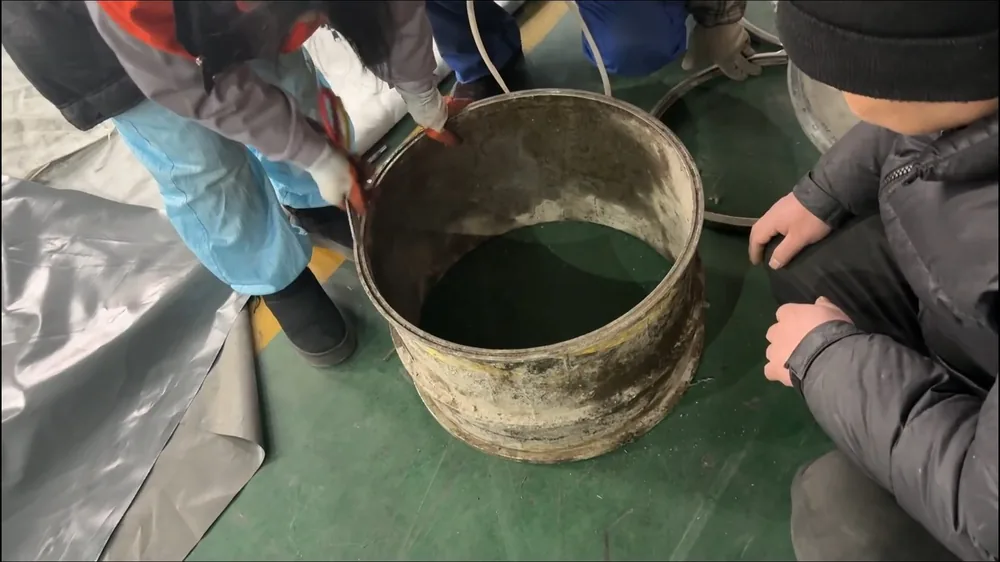

- A resin-soaked liner is fed into the pipe and expanded against the wall.
- The liner cures, and connections such as branch lines are reopened.
- A final camera pass confirms the result, and you should receive the recording.
Ask how long water must stay off while the liner cures. That is the main limit on how you use the house during the job. The cleaning step is covered on the hydro jetting page, because a lined pipe is only as good as the cleaning behind it.
What lining cannot fix, and the cases that need digging
- A collapsed pipe has no interior to line.
- A bellied section that holds water will keep holding water inside the liner.
- A severe offset may block the liner or leave a step.
- Damage at a connection to the main or to another line may need separate work.
A liner also does not replace the cleanout or the access you need for future service. Ask where the access will be and whether it will be left in a usable state.
The same idea under a floor: no-dig rerouting for slab leaks
Trenchless thinking applies to supply lines too. When a line under a concrete floor has failed, the plumber can often abandon it and run a new line through the walls or attic instead of breaking the slab. That is a reroute, not a liner, and it is covered with the repair options on slab leak repair options.
Line it now, or wait? A question for a second opinion
Early cracks and light root intrusion are the cases where lining is most attractive, because the pipe is still sound and the repair is limited. Waiting can let the damage progress to a point where lining no longer fits. That is a reason to act on camera evidence, and not a reason to rush on a sales pitch. If the quote seems large, ask for the footage and have a second plumber look at it.
Permits, licensing and what to ask first
Alhambra's municipal code, as published online, requires a permit from the Director of Public Works to construct, connect to, tap or maintain a connection to a public sewer. Ask the plumber whether lining touches the public connection and who will pull any permit, and confirm the current rule with Public Works at 626-570-5067. We have not verified where a homeowner's responsibility for the lateral ends, so ask that too.
California requires a contractor license for jobs of $1,000 or more, labor and materials together, and lining nearly always exceeds it. Check the plumber with the Contractors State License Board License Check tool and ask for license details in writing.
- Which section of pipe will be lined and how long it is.
- What the liner is made of and what the manufacturer's warranty covers.
- Whether the line will be cleaned and inspected before and after, with recordings.
- How branch connections and the cleanout will be handled.
- What happens if the camera shows the pipe is not suitable once work starts.
Trenchless repair questions
When is trenchless pipe lining better than digging up a sewer line?
Lining suits cracks, root intrusion and corrosion in a line that is still intact and in shape. It does not suit a collapsed pipe or a severe offset. A camera inspection tells you which applies.
Can a collapsed sewer pipe be lined?
No. A liner needs an existing pipe to bond to. A collapsed section needs excavation and replacement, which is why the camera comes first.
Does trenchless sewer repair need a permit in Alhambra?
Alhambra's municipal code, as published online, requires a permit from the Director of Public Works to construct, connect to, tap or maintain a connection to a public sewer. Confirm the current rule with Public Works before work starts.
Wondering if your pipe can be lined instead of dug up?
Tell us what the camera showed or what symptoms you have. You will get a clear answer on whether lining is worth exploring for your line.
